How to Configure Create Foreign Key in iDempiere

The Create Foreign Key window is a System Administration process in iDempiere that generates and synchronizes database-level foreign key constraints based on the Reference Table settings defined on AD_Column.

Running this process protects referential integrity across sales, inventory, and customer data, preventing orphaned records as store-specific customizations grow.

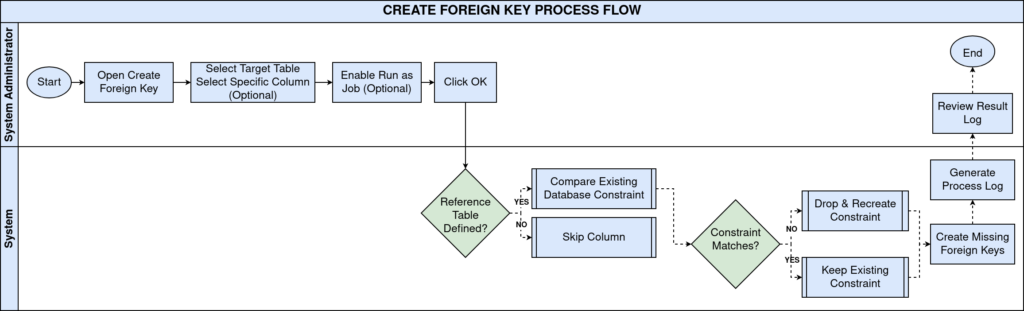

Process Flow

Business Rules

• Only columns with a Reference Table set on AD_Column are eligible for foreign key creation.
• Key columns and UUID columns are excluded from foreign key generation automatically.
• AD_Client_ID, AD_Org_ID, CreatedBy and UpdatedBy columns are skipped by default.
• Existing database constraints are compared against AD_Column settings before any change.
• Mismatched constraints are dropped and recreated to match the FK Constraint Type on the column.
• Running at table or database level processes every eligible column found in that scope.
• The process can be scheduled as a background job for large retail table syncs.

Prerequisites

• Custom table registered in Application Dictionary (Table and Column window).
• Column created with the correct Reference Table pointing to the parent table.
• FK Constraint Type set on the column, if non-default behavior is required.
• Database user has ALTER TABLE privileges on the target schema.
• Table synchronized with the physical database (Sync This Column / Table completed).

Note: Leaving Table blank scans every registered table in the database and may take significant time on production retail environments.

Navigation

Menu → System Admin → General Rules → Database → Create Foreign Key

Configuration Steps

Step 1: Open the Create Foreign Key Process

Use the search bar and type “creat” to filter, then select Create Foreign Key from the process list to open the parameter window.

Step 2: Select the Target Table

Choose the table from the Table dropdown, for example C_InvoiceLine. Leave Column blank to process all eligible columns on the table.

Step 3: Select a Specific Column (Optional)

Select the column from the Column dropdown, for example QtyInvoiced. Leave it blank to process the entire table instead.

Field Reference Table

Field	Sample Value	Description
Table	C_InvoiceLine_Invoice Line	Table whose columns are scanned for foreign key sync
Column	QtyInvoiced_Quantity Invoiced	Specific column to process; optional
Run as Job	Unchecked	Runs the process in the background scheduler queue

Step 4: Choose Run as Job for Large Syncs

Check Run as Job before clicking OK when syncing high-volume transaction tables during off-peak hours.

Step 5: Execute and Review the Result Log

Click OK to run. Review the result message showing table count, foreign keys created, and error count in the process log.

Common Issues and Resolutions

Issue	Cause	Resolution
No foreign key created	Column has no Reference Table set	Set Reference Table on the column in Table and Column window
Constraint already exists error	A manually created DB constraint uses a different name	Let the process detect and reuse the existing constraint name
Column skipped silently	Column is AD_Client_ID, AD_Org_ID, CreatedBy or UpdatedBy	Set FK Constraint Type explicitly if a constraint is really needed
Process runs slowly on large tables	Full database or table-level sync scans many columns	Enable Run as Job and schedule during low-traffic hours
Constraint dropped unexpectedly	FK Constraint Type set to Do Not Create – Ignore	Change FK Constraint Type on the column before rerunning
Error count greater than zero	Data violates referential integrity (orphan records)	Clean up orphan child records before recreating the constraint
Key or UUID column not processed	Key and UUID columns are excluded by design	Expected behavior; no action needed

Next Steps

• Table and Column window – define Reference Table and FK Constraint Type.
• Sync This Column / Sync Database process – align dictionary with DB schema.
• Reference and Reference List windows – set up lookup values for new columns.
